AMX-60

Basic Material Size & Features

The length of each AMX 60 section will vary depending on the material choice.

AMX 60 dimensions based on popular optimal fencing materials:

Temporary (AMX-T): 1 - 5 years

Perforated & Non-perforated Plastic (HDPE)

Thickness: 0.04in / 1mm

Length: 50ft / 15m

Weight: 50lbs / 23kg

Semi-Permanent (AMX-SP) : Up to 15 years

Perforated & Non-perforated Plastic (HDPE)

Thickness: 0.08in / 2mm

Length: 20ft / 6m

Weight: 50lbs / 23kg

Preformed Metal (AMX-XP) : ~ 30 Years

Perforated & Non-perforated Metal

Thickness: 0.08in / 2mm

Length: 8ft / 2.4m

Weight: 116lbs / 53kg

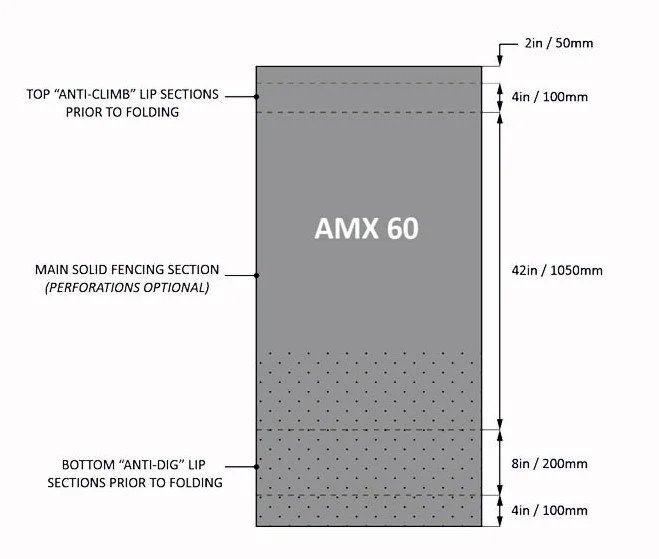

AMX 60 INSTALLED ABOVE GROUND HEIGHT: 42in / 1050mm

Download the full AMX-60 specifications and special attachment diagrams…

Notes:

These dimensions are a guide and based on maximizing the amount of material that can be shipped economically and maneuvered on site in line with common health and safety guidelines. The exact lengths, thickness and weights may vary.

Material may be shipped in sheets or rolls depending on their length.

Customized options for alternative AMX 60 barrier options are available from Animex® Fencing suppliers upon request. Other traditional fencing materials including posts and wire etc can be obtained from local suppliers or contractors.
